AUTO HYDRAULIC DOUBLE END TENONING MACHINE

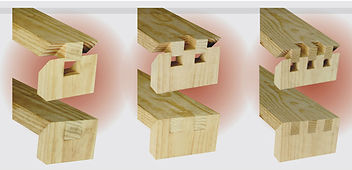

AUTO HYDRAULIC DOUBLE END TENONING MACHINE FOR DOOR & WINDOW FRAMES
DST-3000 is a professional machine can make double end tenoners of door and window frame.
DST-3000 can be designed & built by each client’s production demand.
DST-3000 can produce one end tenoner or double end tenoners.
With a manual lubricator for lubricating each lineal guide way to reinforce a pricise and stable teononing. (auto lubricator is option)
The slide way for adjusting tenoning length is equipped with lineal guide way and digital readout to get and accurate length adjustment.
The feed speed of each spindle shaping motor can be controlled individually by the solenoid valve to get precise tenonings.
Each spindle shaping motor is equipped with lineal guide way for more accurate and stable tenoning.
Loading table on both sides is built with auto fence which can quickly & stably position workpieces to shorten working time.
The lubrication tank is usede to the lubricate the inside of the sliding block.when oil insufficient, please the oil tank be fulfilled around 80% and use no.50 lubrication.
The sliding blocks and bearing nuts must be lubricated. every week to let the indise of blocks and bearings be well lubricated.
HYDRAULIC VALVE CONTROL.
MOTOR OF UPPER CUTTER AND MOTOR OF LOWER CUTTER.
