FULPOW

MOULDING SANDER

MOULDING SANDER

MOULDING SANDER

Model:

  • MS-300/7S/4

OVERVIEW:

MOULDING SANDER

DESCRIPTION

  • The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.

  • All operating controls are centralized in a convenient control panel.

  • Large clearly identified and color coded push buttons simplify set up and start up.

  • Roller conveyor 1,840mm long with rubber rollers, working height 852mm.

  • Conveyor speed varible adjustment by adjusting knob.

  • Top two sets of brushing heads with variable speed adjustment by inverter.

  • Working height adjustment by handle wheel.

  • Left and right side brushing heads on both side. Left side brushing head is adjusted by handle wheel.

  • Model: ms-300/7s with twomore sets of bottom brushing heads variable speed adjusted by inverter.

  • Working height adjusted by handle wheel.

  • Brushing head with sanding strips and wooden brush. It has been designed for easy replacement.

  • Hold down rollerframe with spring loaded hold down roller.

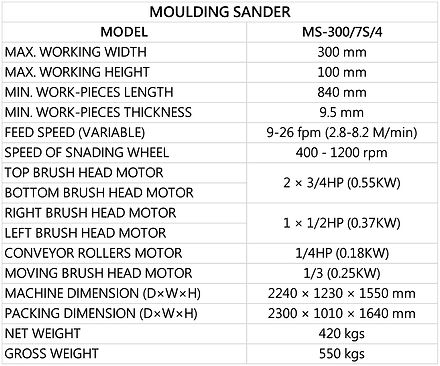

SPECIFICATION
