MULTIPLE RIP SAW

HEAVY DUTY GANG RIP SAW

HEAVY DUTY GANG RIP SAW

Model:

  • GRS-12H

OVERVIEW:

HEAVY DUTY GANG RIP SAW

Description



  1. The machine is suitable to rip wood panels. Furniture boards, building material, decoration materials, acrylic boards and light metallics boards etc.

  2. The ultimate precision saw spindle of rigidity and stability construction ensure high working precision and extended service life.

  3. The fc-30 one-piece cast machine with rustproof ensures rigidity and stability of the machine.

HEAVY  DUTY GANG RIP SAW

  • Synchronized and power feeding with 6 upper feeding rollers along with 4 feeding rollers on the working table enable smooth and uninterrupted cutting.

  • Upper feeding axle of 40mm in diameter, the upper and lower feeding rollers of 140mm in diameter, length = 305mm, minimum length of workpiece = 230mm.

  • The sawing blade located under the working table provides stable and smooth cutting in safe operation and handy disposal of wood chips as a highly efficient design.

  • The upper and lower feeding rollers come with a universal adapter for synchronized transmission of powerful and accurate transmission.

  • The saw spindle motor and the sawing spindle come with a coupler allowing the saw to go up and down in synchronization without going off the fixed center while keeping the belt in preset tension for easy and fast operation.

  • An easy and handy design micro switch controls the independent lift and the trip limit of both the upper feeding roller and the saw spindle that makes the operation safe and convenient.

  • The two 5"-diameter chip removers are designed in the lower rear section for fast and easy installation.

  • The feeding gear non-stage transmission makes the saw apt for easy works on both soft and hard woods.

  • The 6 upper feeding rollers are provided with pneumatic cylinder of 3-stage control for easy and fast pressure adjustment.

  • This machine comes with 3 stages of anti-kick-back design, 2 on the top and 1 on the bottom, providing maximum safety to both the operator and the machine.

  • The sleeve type saw spindle comes with a telescopic sawing blade kit for easy and handy replacement that can improve working efficiency.

  • The quintuplet switch attached to the rear of the machine provides upgraded handiness, accuracy and safety in operation.

  • The gauge attached to the top of the saw spindle allows the user to reach the working positioning rapidly and accurately that helps save working time, no matter what type of sawing blade is used.

  • The guiding adjuster comes with a gauge indicating accurate cutting size of the wood that allows easy and rapid operation for minimum waste.

  • The machine is equipped with an additional roller and a side pressure roller.

  • The roller allows time and effort-saving operation while the side pressure roller keeps the wood tightly against the guiding plate for accurate work.

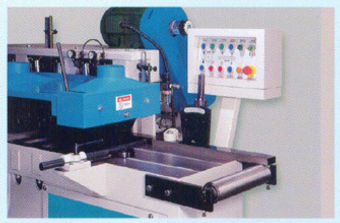

  • The operation console features easy and optimal controls. The switches come with legends for clear indication of easy identification. This highly safe machine is also an economic working companion.

SPECIFICATION
