THIN CUTTING FRAME SAW
THIN CUTTING FRAME SAW
(CUTTING HEIGHT 250MM)
Thin cutting frame saw：
Up to a 70% wood savings

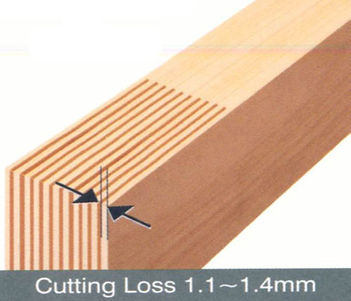

Precision saw blades with a 1.2mm to 1.6mm kerf, you could see wood savings of up to 70% in comparison to band and circular saw blades. This is a major advantage when cutting grades of wood.
CENTRALIZED PRESSURE REGULATIONS
Each pressure roller is equipped with independent pressure regulator for individual air pressure adjustment.
All pressure regulation valves are centralized for convenient adjustment and maintenance.
The machine is equipped with a plc control for maximum operation convenience.
Electronic components and circuit design fully meet ce safty regulations.
Comprehensive anti-interference protection devices.
Self-diagnostic functions and warning lamp displays.
MULTIPLE GUIDE FENCE
Upon request, the machine is available to supply with several guide fences. Fence sizes can be specified by customer. The use of multiple guide fence enables the machine to cut several wood materials at a time.
GUIDE FENCE AT SIDE
In case the guide fence is mounted at the side, the machine allows for cutting a single wood material.
GUIDE FENCE AT CENTER POSITION
In case the guide fence is mounted at the center position, the machine allows for cutting two wood materials at a time for increasing efficiency.
SAW BLADE AIR BLAST
The air blast device provides cooling to the sawblades for extending blades service life. In addition, the device also can remove saw dust existed in blade teeth ensuring high quality cutting at all times.
The wood to be cut is supported steadily, ensuring high stability of cutting.
Designed for profitable production
The tcfs-250 thin-cutting frame saw is designed and engineered to enhance the high efficiency and high accuracy cutting. In addition to provide various cutting modes, the tcfs-250 also features great material cost saving that creates profits for customer. The machine is equipped with a mircro-computer control for maximum operational convenience.
Extremely fine surface effect after cutting which permits direct glue jointing for saving 0.15mm sanding tolerance.ide various cutting modes, the tcfs-150 also features great material cost saving that creats profits for customer.
The machine is equipped with a mircro-computer control for maximum operational convenience.
ACCURATE THICKNESS OF CUT
High accuracy thickness of cut is +/-0.1mm. No gapping problem on the cut surface.
The frame saw reduces material loss to a minimum. It saves 20% wood material when comparing with that by a conventional machining.
Wood cutting performed by the frame saw may reduce material loss to a minimum for saving production cost.
Composite flooring, stair plate and venetian blind
Musical instrument: violin.guitar
toy: airplane model
sporting goods: ski
All specifications, dimensions and design characteristic shown in this catalog are subject to change without prior notice.
