MODEL:

  • HP-33-100(FOUR LAYER)

OVERVIEW:

HOT PRESS

FEATURES:



  1. The heating style of this machine can be divided into electric thermo-couple heating, steam boiler heating & hot transfer oil heating etc.,

  2. The electric platen is made of thick rigid steel plate and drilling hole to inserted the electric heating tube, the heating resistant can be reached 150°c. max. and the max. pressure resistant which about 20 kg/cm².

  3. The steam platen is made of thick rigid steel plate and drilling hole to circulate the heating medium,the heating resistant can be reached 200°c max. and the max. pressure resistant which about 20kg/cm².

  4. The impressing platen surface is plated with stainless steel which convenient for pressing processed.

  5. The two end of machine is installed gear rack which can be made the hyd. cyl. synchronous  elevating
     completely.  since, the total acting force of impressed platen can be spreaded evenly.

  6. This machine is suitable for lumber, plywood, membrane, decorative paper, veneeed paper or pu injection forming, foam forming, bakelite hot pressing forming & chip board forming etc.,

STANDARD ACCESSORIES OF ELECTRICAL CONTROLLING:



  1. Auto temp controlling switches

  2. Compression holding timer

  3. Manual/auto selecting switches

  4. Compensated pressure setting gauge

  5. Motor overload pilot lamp

  6. Emg. stop switches

  7. Auto start switches

  8. Creep elevating switches

  9. Electric heating abnormal indicating meter

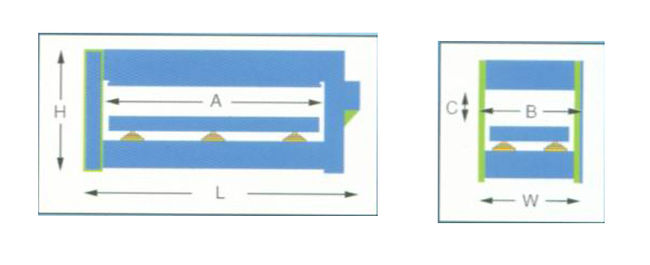

SPECIFICATION
