FULPOW

SINGLE ROUND END TENONER

SINGLE ROUND END TENONER

SINGLE ROUND END TENONER

Model:

  • ATM-115

OVERVIEW:

SINGLE ROUND END TENONER

Description



  1. Built with two tables for higher efficiency operations.

  2. High production rate up to 12 pcs per minute.

  3. Pneumatically operated table longitudinal traverse.

  4. Adjustable tenoning width.

  5. The tenon without removing the door, depth can be coveniently adjusted.

  6. Table tilts 20°.

  7. Movable table to save time, and speed can be variable adjustment.

  8. Convenient setup of tenon directions at horizontal, vertical and 45°.

  9. Miter gauge provided on the table allows for cutting bevel tenons.

  10. Oil bushings on the table support and the disk.

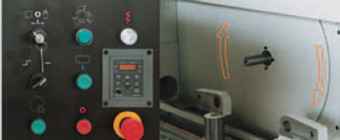

  11. Centralized control panel provides convenient opwrations.

  12. Designed for producing various types of tenon

  13. Variable table feed speed suits various types of wood material.

CONVENIENT STEUP OF TENON DIRECTION



  • Three tenon directions at horizontal, vertical and 45° can be fast changed by turning the positioning disk.

  • A mechanical meter is provided for high accuracy adjustment of tenon sizes.

OILLESS BUSHINGS

  • Eliminatesthe use of lubricator, the table support and the disk are equipped with oilless bushings.

  • Manufactured form high tensile copper alloy for long service life, these bushings also feautre impact resistance and maximum wear resistance.

DISK SPEED CONTROLLED BY FREQUENCY INVERTER(OPTIONAL)



  • When requested, a frequency inverter can be applied to control disk speed.

  • It permits variable speed adjustment for various type of wood material.

  • This device is recommanded when cutting plywood, mdf, and easily cracked panel.

VARIABLE CUTTER FEED SPEED



  • The machine employs two speed regulator knobs to adjust the table feed forward and blckward speeds.

  • Variable feed speeds makes the machine ideal for cutting hard and soft wood.

THROW AWAY TIPS CUTTERHEAD (OPTIONAL)



  1. Excellent for all soft and hard wood materials.

  2. 360° cutting.

  3. Fine chips.

  4. No tearing.

  5. Forced chip removing to eliminate repeated cutting.

  6. Low noise, long service life, insert life up to 120 days.

  7. 5 years warranty.

CUTTERHEAD STRUCTURE (STANDARD)



  1. Suitable for medium hardness wood materials.

  2. Production rate 12 pcs per minute.

  3. Tearing may occur when applying for high hardness wood materials.

  4. Sharpening frequency is 6-7 days of operation.

SPECIFICATION
